Two-Sided Digital Impact in a
Space-Saving Vertical Design

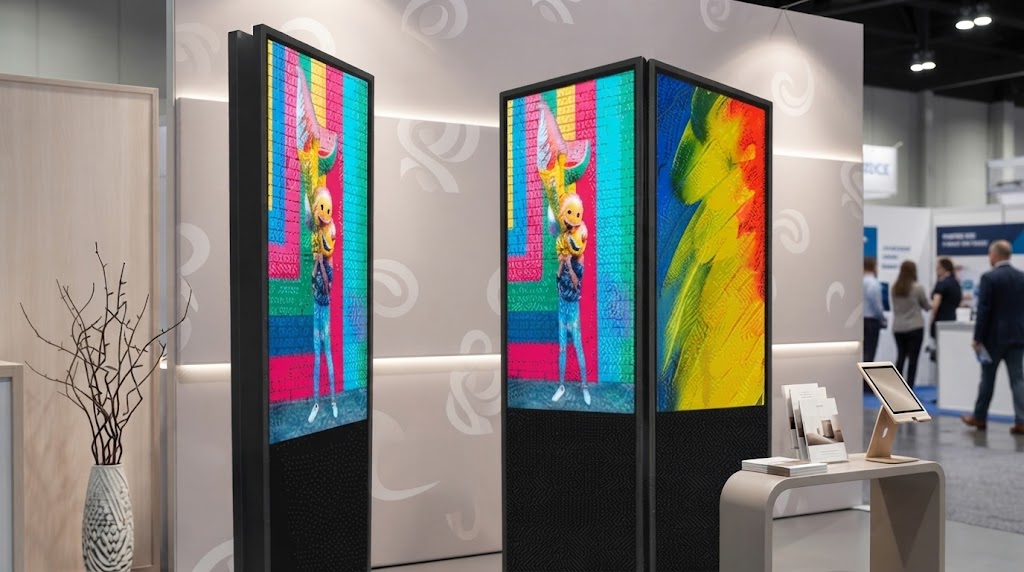

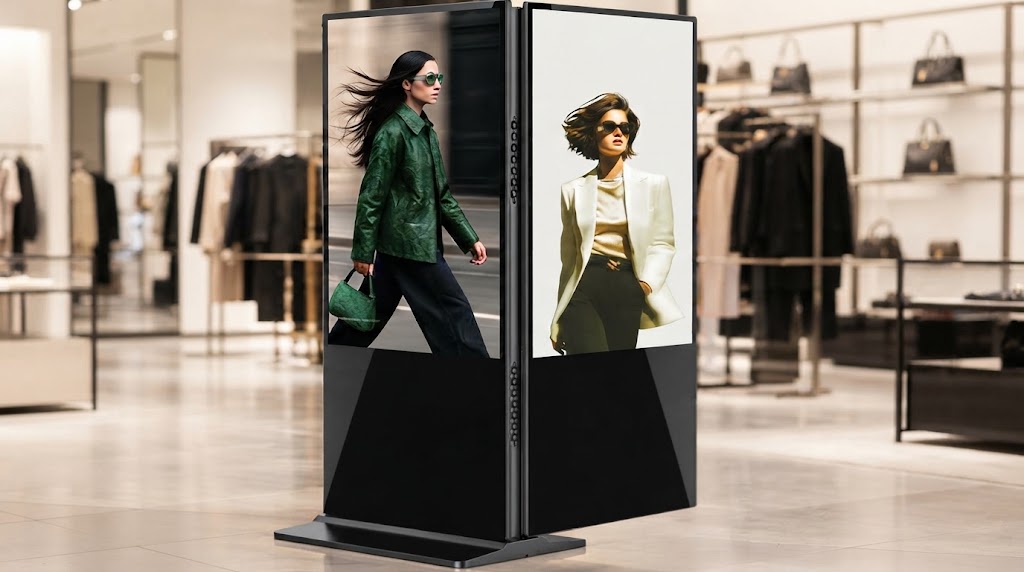

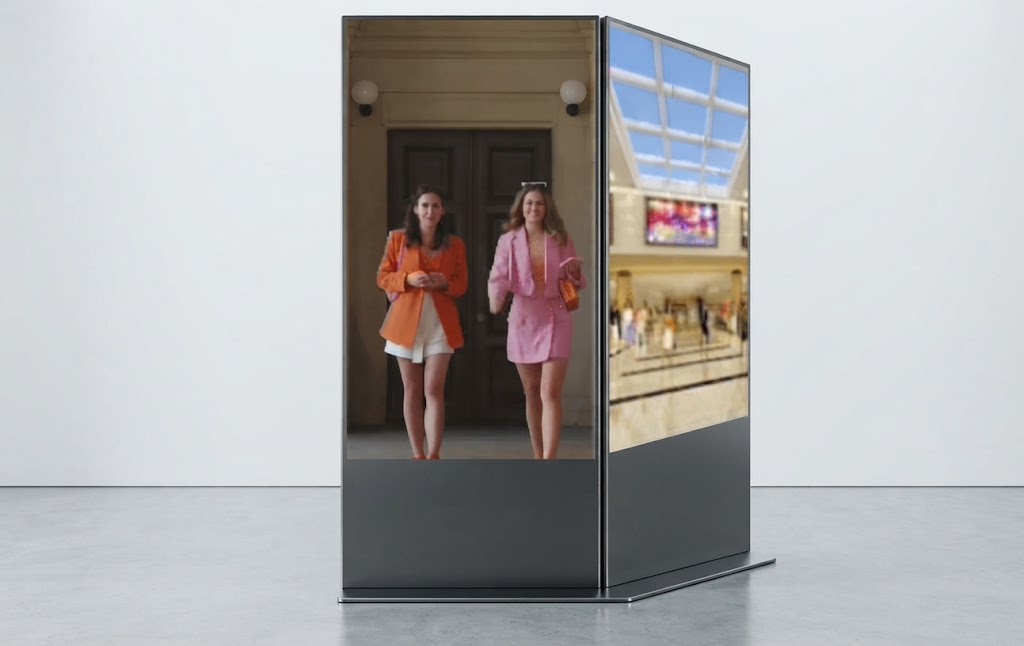

The Vertical Double-Sided Digital Signage is designed to deliver visual content in two directions from a single freestanding display, making it ideal for high-traffic indoor environments. Its vertical format allows businesses to position digital content where customers and visitors naturally move through a space, while the dual-sided design increases visibility without requiring separate display units. The 55-inch screen supports Full HD and optional 4K UHD 3840 × 2160 resolution, providing a detailed platform for advertising, promotions, product showcases and informational content. With a modern aluminium frame, 3mm tempered glass and a robust steel body, the display combines professional aesthetics with practical durability. Trace Enterprise provides advanced double-sided digital signage solutions in Pakistan for modern commercial environments.
Intelligent Split Screen for More Content in One Display
The display is designed to provide more flexibility in how digital content is presented. Its intelligent split-screen capability allows different content layouts to be created within the display environment, helping businesses present multiple types of information within the same installation. The system supports videos, images, subtitles, PowerPoint presentations, web content, weather information and clocks, giving organisations a broad range of options for creating dynamic signage. Custom playback modes can also be configured according to specific requirements. This makes the display useful for retail promotions, product communication, visitor information and branded content. Trace Enterprise helps businesses across Pakistan create more engaging digital signage experiences with flexible content presentation technology.
Manage Digital Content Without Being On Site
Managing multiple digital displays becomes easier when content and system functions can be handled remotely. The Vertical Double-Sided Digital Signage supports remote management, network-based operation and remote system updates, allowing businesses to manage compatible content and system functions more efficiently. The display includes built-in dual-band Wi-Fi supporting 2.4GHz and 5GHz networks, Bluetooth 5.0 and 1000M adaptive Ethernet for network connectivity. It can operate in both networked and standalone modes, while scheduled playback allows specific programmes to be assigned to particular time periods. For businesses with digital signage across different locations in Pakistan, these management features can help simplify content scheduling and operational control.
Built for High-Visibility Indoor Environments
The display combines a large 55-inch screen with an 89° viewing angle in all directions, a 3000:1 contrast ratio and brightness of at least 350 cd/m². Its 60Hz refresh rate supports smooth content playback, while the LED backlight provides consistent visual output. The physical construction includes a metal cold-rolled steel body, oxidised aluminium frame and 3mm tempered glass, creating a professional enclosure for commercial interiors. Designed for indoor environments, the display can operate within a temperature range of 0°C to 55°C and supports AC110–220V power. Trace Enterprise provides professional digital signage technology in Pakistan for retail, hospitality, exhibitions, showrooms and other high-traffic indoor environments.
Product Features
4K UHD Visual Capability
Intelligent Split-Screen Display
Scheduled Content Playback
Dual-Band Wi-Fi & Bluetooth 5.0
Remote & Local System Updates
3mm Tempered Glass Construction
Product Specifications
Display
- Brand
- TREND
- Model
- TR65FSK-DT
- Screen Size
- 55 inch
- Resolution
- 1920 × 1080 / 3840 × 2160 (Optional)
- Angle Of View
- 89 / 89 / 89 / 89
- Contrast Ratio
- 3000:1
- Display Size
- 682.2 × 1211.4mm (H × V)
- Display Rate
- 16:9
- Back Light
- LED
- Brightness
- ≥350cd/m²
- Refresh Rate
- 60Hz
- Color
- 16.7M (8-bit)
Display
- Operation System
- Android
- Version
- 13.0
- CPU
- A527 Octa core A55 (Main frequency up to 1.8GHz)
- GPU
- ARM G57 MC1
- RAM
- 2 / 4GB
- Storage Memory
- 32 / 32GB
- Interface
- HDMI out ×1, USB ×2, TF card ×1
- Audio Interface
- 3.5mm ear jack ×1
- Network
- 1pc, 1000M Adaptive Ethernet
- WIFI, BT
- Built-in WiFi (2.4G/5G dual-mode Wi-Fi), BT5.0
Machine Parameter
- Color
- White/Black
- Frame Material
- Aluminum (oxidized wire drawing)
- Body Material
- Metal cold rolled steel plate (metal coating)
- Surface Material
- 3mm tempered glass (physical)
- Product Size
- 747.1 × 1905.61 × 125.99mm
- Base Size
- 771.66 × 530 × 63.5mm
- Packing Size
- 2100 × 290 × 940mm
- Packing Material
- Carton
- Net/Gross Weight
- 104KG / 106KG
- Access Lock
- Maintain power and circuit board
System Function
- Decoding Capability
- Supports 4K video and picture decoding and playback
- Software Application
- Support to install the third-party software
- Language
- Russian, English etc language
- Boot Animation
- Support to customize
- Infrared Remote Control
- Operate system by remote control
- Audio Function
- Support left/right channel output, built-in double 8Ω/9.5W power amplifier
- Power-on/off
- Remote control / timing / network wake-up / self-start
- System Authorization
- Allow root permission and customize software development
- Mouse Mode
- Support wired/wireless mouse or use keyboard
- System Update
- Support local and remote upgrade
- Play Mode
- Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc
Picture: JPG, BMP, PNG etc
Video: AVI, rm, rmvb, MKV, WMV, MOV, MP4 etc - Typing
- Standard Android keyboard as default, can install the third party typing
- More Functions
- Follow instruction manual video or contact supplier
Software Functions
- Background Support
- Web/mobile IE (local network/WAN)
- Play Support
- Video, picture, subtitles, PPT, web, weather clock etc mixture play
- Smart Splicing
- Support custom playing modes to splice as setting
- Timing Function
- Support to set playing custom program in time period
- Terminal Administration
- Administrator can create and modify account for level-to level administration
- Terminal Administration
- Follow instruction manual video or contact supplier
Electrical Features
- Scenarios
- Indoor
- Rated Voltage
- AC110-220V
- Stand By Power
- ≤1W
- Rated Power
- ≤180W
- Suitable Environment
- Temperature 0°C ∼ 55°C / humidity 10% RH ~ 90% RH
- Storage Environment
- Temperature −5°C ∼ 60°C / humidity 10% RH ~ 90% RH
