Triple-Sided Visual Impact in
One Flexible LED Display
The Triple Folded LED Poster Display is designed to give businesses a larger visual presence while keeping the practicality of a portable digital display. Its three-panel folding structure creates a striking multi-surface presentation that can be used as a standalone screen or combined with additional displays for larger visual installations. The P1.86mm and P1.5mm pixel pitch options provide detailed LED imagery, while a 3840Hz refresh rate supports smooth playback of dynamic content.
Its wheeled base also makes repositioning straightforward, allowing businesses to move the display between different areas as required. Trace Enterprise provides professional LED poster display solutions in Pakistan for retail, exhibitions, corporate spaces, transportation facilities and educational environments.

Three Panels One Continuous Visual Experience.

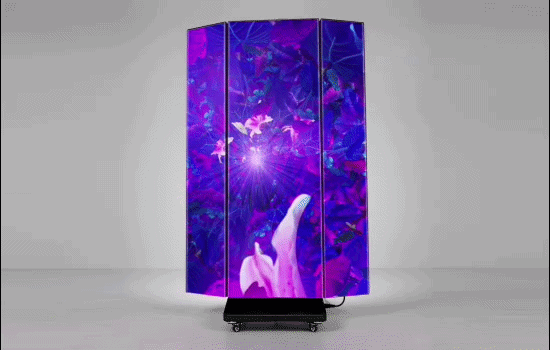

The triple-folded structure allows digital content to extend across three connected surfaces, creating a more immersive visual presentation than a conventional single-screen poster. Each display measures 1280 × 1920mm, while the overall configuration reaches approximately 1280 × 2070mm, giving businesses a substantial vertical display area without requiring a permanent wall installation. Multiple screens can also be seamlessly spliced together when a larger visual canvas is required.
This flexibility makes the display suitable for brand campaigns, product launches, exhibition graphics, promotional content and large-scale visual presentations. For businesses across Pakistan, Trace Enterprise provides LED display technology designed to create stronger visual impact in spaces where portability and flexibility are important.
Move Your Digital Message Wherever It Matters

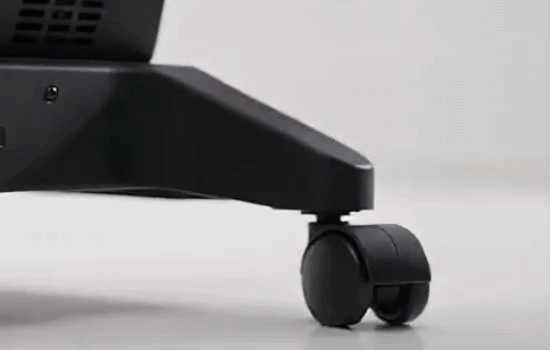

A major advantage of the Triple Folded LED Poster Display is its built-in mobility. The display uses four heavy-duty lockable swivel casters that provide smooth 360° movement, allowing it to be repositioned around showrooms, retail environments and event venues. The durable steel base provides stability while the display is being moved or used in everyday commercial settings. This makes it particularly useful for exhibitions and trade shows where display layouts can change throughout an event, as well as retail environments where promotional screens may need to move between departments or campaigns. Trace Enterprise offers mobile LED display solutions in Pakistan for organisations that need visual technology without being restricted to a fixed installation.


Flexible Playback for Events, Retail and Corporate Spaces
The display supports multiple playback and control methods, giving businesses flexibility in how they deliver and update digital content. Content can be played through PC, smartphone, iPad and USB, while connectivity options include Wi-Fi, HDMI, LAN and USB. Both synchronous and asynchronous playback are supported, allowing the display to work in different content management scenarios. The system is also designed for commercial-grade 24/7 reliability, with a typical lifespan of up to 100,000 hours. These capabilities make the display suitable for retail stores, shopping malls, exhibitions, corporate lobbies, airports, transportation facilities and universities. Trace Enterprise provides flexible LED display technology across Pakistan for businesses and institutions that need reliable, high-impact visual communication.
Product Features

Triple-Folded Three-Surface Design

P1.5 & P1.86 Pixel Pitch

Seamless Multi-Screen Splicing

360° Swivel Mobility

Synchronous & Asynchronous Playback

3840Hz Refresh Rate
Product Specifications
Module Parameter
- Pixel Pitch
- P1.86: 1.86 mm
P1.5: 1.5 mm - Pixel Configuration
- 1R1G1B
- Module Resolution
- P1.86: 172 × 86 Pixels
P1.5: 204 × 102 Pixels - Module Size
- 320 × 160 mm
- Protection Technology
- IP65
- Module Weight
- 550 g
- Module Quantity
- 4 × 12
Application Parameter
- Typical Lifespan
- 100,000 Hours
- Operating Temperature
- -40°C to +50°C
- Operating Humidity
- 10–80% non-condensing
- Storage Temperature
- -40°C to +65°C
- Storage Humidity
- 10–90% RH, Non-Condensing
Performance Processing
- Drive Mode
- Constant Current Drive
- Frame Rate
- 60 Hz
- Refresh Rate
- 3840 Hz
Power Requirement
- Input Voltage
- AC 110–220V
- Maximum Power Consumption
- P1.86: 900 W
P1.5: 1200 W - Average Power Consumption
- P1.86: 300 W
P1.5: 400 W
Whole Display
- Display Resolution
- P1.86: 688 × 1032 Pixels
P1.5: 816 × 1224 Pixels - Display Size
- 1728 × 1920 mm
- Overall Dimensions
- 1720 × 2070 mm
- Gross Weight
- 78 kg
Speaker
- Speaker (Optional)
- 2 × 50 mm Speakers
- Audio Interface
- 3.5 mm Audio Interface, Supports External Amplifier
