Professional 4K Imaging for
Large-Scale Collaboration
The OBS490 is designed to deliver detailed, professional-quality video for medium and large meeting environments. Its high-quality 8.5-megapixel Sony CMOS image sensor supports 4K UHD resolution up to 3840 × 2160 at 30fps, providing clear visuals for meetings, training sessions and remote collaboration. The camera also supports multiple video formats and output options, making it suitable for integration with different conferencing and AV systems.
With its combination of high-resolution imaging and professional control capabilities, the OBS490 helps participants remain visible and content easy to follow, even in larger spaces. Trace Enterprise provides advanced 4K PTZ camera technology in Pakistan for organisations requiring dependable visual communication.
Wide-Area Coverage with Optical Precision

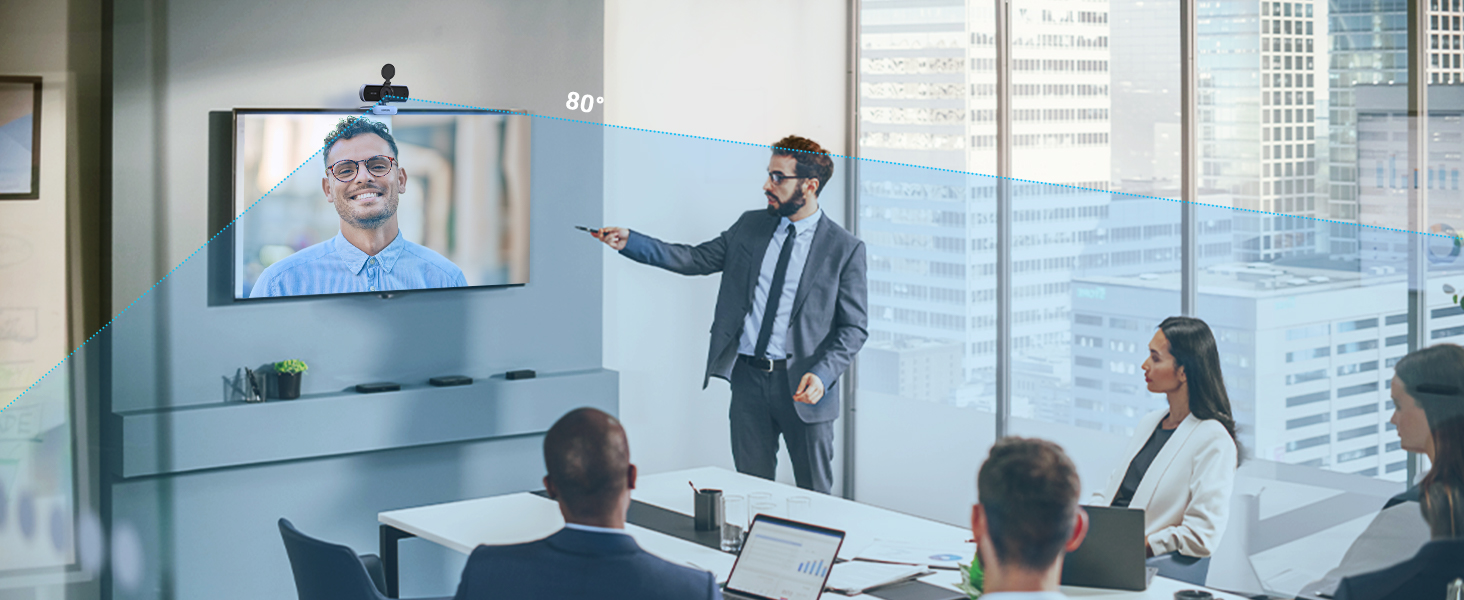

The OBS490 combines a 110° panoramic lens with a dedicated close-up lens and 12x optical zoom, giving users greater control over how meeting spaces are captured. The wide-angle lens can provide a broad view of participants, while the optical zoom allows the camera to focus on individual speakers and details without relying entirely on digital enlargement. The camera also supports pan movement from -110° to +110° and tilt from -30° to +30°, allowing flexible positioning during installation and operation. With this combination of wide coverage, optical precision and PTZ control, the OBS490 can support boardrooms, training rooms and other professional environments across Pakistan
AI-Driven Framing and Speaker Detection
The OBS490 uses intelligent camera functions to make professional meetings more dynamic and easier to follow. Its built-in processor and face-detection algorithm can automatically identify participants and provide optimal framing, helping keep people appropriately positioned within the camera view. The camera also features six omnidirectional microphone arrays with an intelligent sound-source localisation algorithm that can identify the speaker’s position in real time.
This combination of visual and audio intelligence can help the camera respond naturally as conversations move between participants. For corporate meetings, training sessions and hybrid communication, the OBS490 provides a more automated conferencing experience. Trace Enterprise offers AI-enabled PTZ camera solutions for professional environments across Pakistan.
Flexible Integration Across Professional AV Systems
The OBS490 is built to integrate into a wide range of professional AV and conferencing environments. It supports USB 3.0, HDMI, LAN and PoE, with USB 3.0 providing plug-and-play connectivity for straightforward deployment. The camera also supports professional network protocols including ONVIF, RTSP, RTMP, RTMPS, SRT and VISCA over IP, while VISCA, PELCO-D and PELCO-P protocols are available for camera control. With support for up to 255 preset positions, remote upgrades and remote restart through supported network protocols, the camera can be configured for demanding installations. This makes the OBS490 a practical choice for enterprise AV environments and professional conferencing projects in Pakistan.
Product Features
4K Ultra HD Display
Dual Operating Systems
Multi-Touch Input
Anti-Glare Glass
Built-in Speakers
Wireless Screen Sharing
Product Specifications
Lens
- Image Sensor
- 1/2.8 inch high quality CMOS sensor
- Effective Pixel
- 8.51M, 16:9
- Video Signal HDMI
- 4K@30, 4K@25, 1080P@30, 1080P@25, 1080P@29.97
- USB 3.0 Main Stream
- YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×360/480×270/320×180 @10/5fps; MJPG/H264: 3840×2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240 @30/25/20/15/10/5fps
- SNR
- >50dB
- Video Adjustment
- Brightness, Hue, Saturation, Contrast, Sharpness, Black & White Mode, Gamma Curve
- Panoramic Lens
- Fixed Lens
- Control Protocol
- VISCA / Pelco-D / Pelco-P; Baud Rate: 115200 / 38400 / 9600 / 4800 / 2400
- USB Communication Protocols
- UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
- Control
- RS232-IN
- Power Supply
- HEC3800 power socket (DC12V)
- Close-up Lens
- 12× Optical Zoom
- Viewing Angle
- H: 7.6° (N) ~ 80.5° (W); FOV: 110.2° / 101.8° / 69.5° (D/H/V)
- Digital Zoom
- 15×
- Minimum Illumination
- 0.5 Lux (F1.8, AGC ON)
- DNR
- 2D & 3D
- White Balance
- Auto / Manual / One-Key White Balance / Specified Colour Temperature
- Focus Mode
- Auto / Manual / One-Key Focus
- Exposure Mode
- Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
- Iris
- F1.8 ~ F3.6 (Additional: F2.0 ±5%)
- Shutter Speed
- 1/25 ~ 1/20000
- BLC
- On / Off
- Dynamic Range
- Off, 1 ~ 8
- Focus (Lens)
- F = 1.89mm
Interface
- Back Panel
- HDMI, LAN (support POE), USB3.0, A-IN, RS232-IN, DC12V power supply, Power switch
- Video Output
- HDMI, LAN, USB3.0
- Video Compression Format
- LAN: H.264, H.265; USB 3.0: MJPG, H264, YUY2, NV12
- Audio Input
- Dual channel 3.5mm linear input
- Audio Output
- HDMI, LAN, USB3.0
- Audio Compression Format
- AAC, MP3, G.711A
- LAN Port
- 10M/100M/1000M adaptive Ethernet port, supports POE power supply, supports audio and video output
- Network Protocols
- RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT; supports remote upgrade and remote restart
- Serial Port Communication Protocols
- VISCA / Pelco-D / Pelco-P; Baud Rate: 115200 / 38400 / 9600 / 4800 / 2400
- USB Communication Protocols
- UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
- Control
- RS232-IN
- Power Supply
- HEC3800 power socket (DC12V)
- Power Adapter
- Input: AC110V ~ AC220V; Output: DC12V / 2.5A
- Input Voltage
- DC12V ± 10%
- Input Current
- <1A
- Power Consumption
- <12W
Others
- Storage Temperature
- -10°C ~ +60°C
- Storage Humidity
- 20% ~ 95%
- Working Temperature
- -10°C ~ +50°C
- Working Humidity
- 20% ~ 80%
- Dimension (L × W × D)
- 220 × 144 × 159 mm
- Weight (Approx.)
- 1.7 kg
PTZ
- Pan
- -110° ~ +110°
- Tilt
- -30° ~ +30°
- Preset Quantity
- Up to 255 preset positions (10 via remote control)
- Pan Speed
- 0.1°/s ~ 100°/s
- Tilt Speed
- 0.1°/s ~ 70°/s
- Preset Speed
- Pan: 78.8°/s, Tilt: 31.7°/s
Accessories
- Standard Accessory
- Power adapter, RS232 control cable, USB 3.0 cable, remote control, user manual
- Optional Accessory
- Mount brackets
AI Function
- Auto Framing
- Built-in high-speed processor and face detection algorithm, automatically detects participants and provides optimal framing
- Speaker Tracking
- Built-in 6 omnidirectional microphone arrays with intelligent sound source localisation algorithm, capable of locating the speaker’s position in real time
