QLED Interactive Flat Panel for
Modern Spaces
The QLED Interactive Flat Panel from Trace Enterprise combines advanced display technology with interactive features for modern classrooms, meeting rooms, boardrooms, and training spaces. Designed for organisations across Pakistan, it provides a practical platform for presentations, teaching, brainstorming, and collaborative work. Its 4K UHD QLED display delivers sharp and vivid visuals, while zero-bonding infrared touch technology supports responsive interaction.
The panel brings content, communication, and collaboration together in one integrated display. Whether used in a corporate office, educational institution, or professional training environment, it provides a modern and engaging way to present information, share ideas, and work together.

4K QLED Display for Clear Visuals
Experience detailed and vibrant content with the 4K UHD QLED Interactive Flat Panel supplied by Trace Enterprise in Pakistan. The display supports 10-bit colour and a 110% colour gamut at 60Hz, helping deliver clear visuals for presentations, videos, graphics, and digital learning content. An automatic brightness sensor adjusts the display according to surrounding ambient light, while its wide viewing angle supports comfortable viewing across shared spaces. With its combination of high-resolution visuals and interactive functionality, the panel is suitable for classrooms, meeting rooms, training facilities, and corporate environments. Trace Enterprise provides this advanced interactive display technology for organisations looking to create more engaging spaces across Pakistan.
Effortless Screen Sharing & Collaboration
The Interactive Flat Panel from Trace Enterprise makes collaboration easier with 4K wireless screen-sharing capabilities. The system can connect up to nine devices and display up to four devices simultaneously, making it suitable for presentations, brainstorming sessions, training, and interactive meetings. It also supports Bring Your Own Device (BYOD), allowing users to share content from compatible personal devices. For wired screen sharing, users can connect through Type-C. Two-way touch control further enhances collaboration by allowing users to interact directly with shared content on the panel. These features make the display a flexible choice for modern workplaces, classrooms, and meeting environments across Pakistan.


Effortless Screen Sharing & Collaboration
The Interactive Flat Panel from Trace Enterprise makes collaboration easier with 4K wireless screen-sharing capabilities. The system can connect up to nine devices and display up to four devices simultaneously, making it suitable for presentations, brainstorming sessions, training, and interactive meetings. It also supports Bring Your Own Device (BYOD), allowing users to share content from compatible personal devices. For wired screen sharing, users can connect through Type-C. Two-way touch control further enhances collaboration by allowing users to interact directly with shared content on the panel. These features make the display a flexible choice for modern workplaces, classrooms, and meeting environments across Pakistan.
AI Smart Writing & Video Conferencing

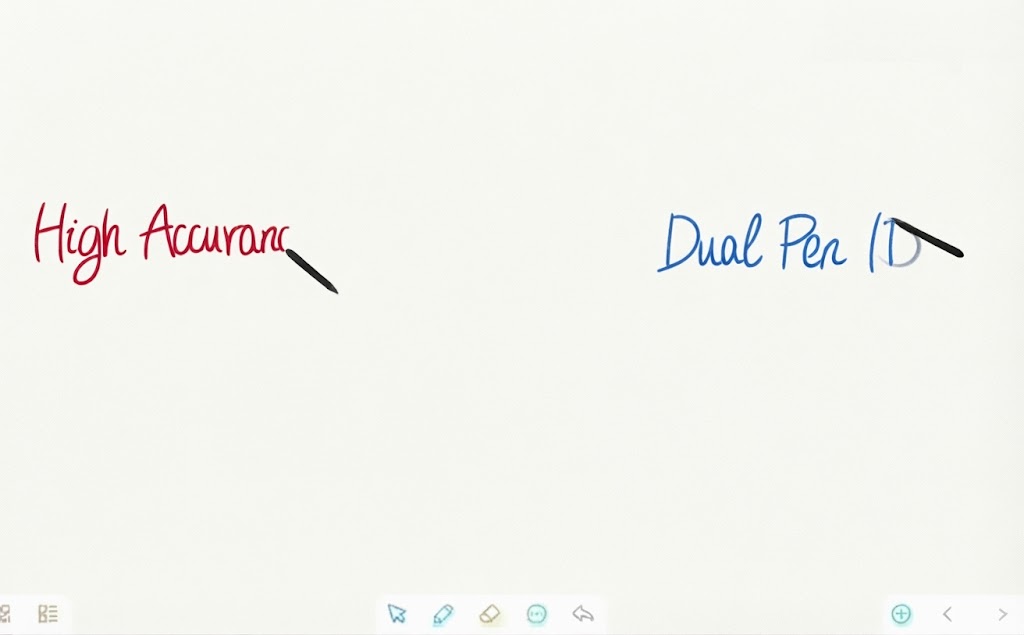

The Interactive Flat Panel combines AI-powered writing capabilities with advanced video conferencing features for modern collaboration. Its AI Smart Board Writing function can recognise hand-drawn shapes and convert handwriting into digital text, while notes can be recorded and saved to the cloud. The conferencing setup includes a 4K camera, a professional Sony image sensor, a 48-megapixel lens, auto-framing, and speaker tracking. Built-in beamforming microphones and dedicated AI audio processing further support online meetings. Available through Trace Enterprise in Pakistan, the panel is designed for presentations, remote meetings, digital teaching, brainstorming, and collaborative communication across corporate and educational environments.

Product Features

20-Point Interactive Touch

Seamless Wireless Collaboration

4K QLED UHD Display

AI Smart Board Writing

AI-Powered Video Conferencing

Android & Windows Support
Product Specifications
Display
- Panel Size
- 65, 86 inches
- Aspect Ratio
- 16:9
- Display Area
- – 65 inches: 1429 (H) × 804 (V) mm
– 86 inches: 1897 (H) × 1068 (V) mm - Resolution
- 3840 (H) × 2160 (V) FULL UHD 4K
- Pixel Pitch
- 0.4935 × 0.4935 mm
- Back Light Unit
- Q-LED
- Response Time
- 8ms
- Color Gamut
- 115%
- Refreshing Frequency
- 60Hz
- Display Color
- 1.07B (10bit)
- Contrast Ratio
- 1200:1 (Typ.)
- Viewing Angle
- 178° (H) / 178° (V)
- Brightness
- 500 cd/m²
- Life Time
- 30,000 hours
Communication
- IR Receiver
- Yes
- Camera
- 48 MP, speaker tracking and auto framing (Optional)
- Microphone
- 8 omni-directional microphones (Optional)
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- WiFi 6.0, 2.4 GHz integrated
- Wireless Access Point
- WiFi 6.0, 5 GHz, supports enabling hotspot and WiFi at the same time
- Speaker
- Built-in 2.1 sound channel, front-end: 2 × 20W, back-end: 1 × 20W
Device / Ports
- Light Sensor
- Ambient light sensor (ALS)
- Front Button
- 8 Buttons (Return, Volume Down/Up, Menu, Home, Power)

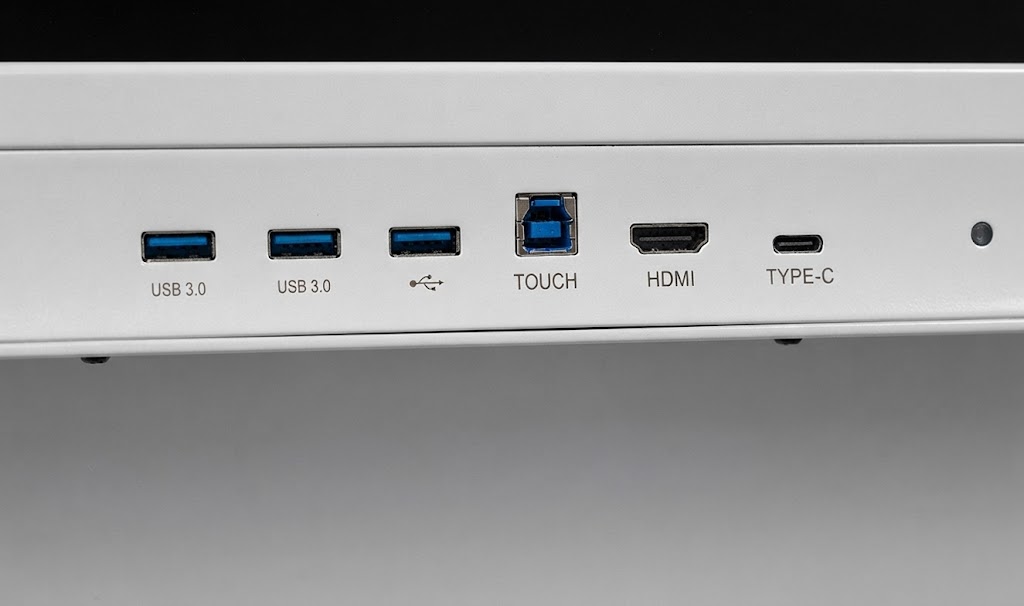

- Front Ports
- HDMI In × 1 (4K @ 60Hz), USB 3.0 Type-A × 3, USB 3.0 Type-B × 1 (Touch), Type-C × 1 (4K @ 60Hz, Touch)
- Rear / Bottom Port
- HDMI In × 3 (4K @ 60Hz), HDMI Out × 1, USB Type-C × 2, USB 2.0 × 1, RS-232 × 1, RJ45 In × 1, RJ45 Out × 1, Audio In × 2, Line Out × 1, COAX Out × 1, Touch USB 3.0 × 3, NFC Reader × 1, OPS Slot × 1, DP In × 1, VGA × 1
Software Features
- Screen Sharing
- With Dongle, Without Dongle, up to 9 Devices, 4 Devices on screen at a time
- Screen Recording
- YES
- Google Play Store
- Access
- Pre-Installed Apps
- Soom, MS Teams, WPS Office
- Cloud Sharing
- YES
- Whiteboard Saving Mode
- QR code scanning, cloud, apps, local and USB
- Smart Writing
- English text & 11 graphic recognition
- PiP
- Picture In Picture Out
Packaging
- Smart interactive panel x 1
- Power cord x 1
- Passive stylus pen x 1
- Wall mounted bracket x 1
- Remote Control x 1
Touch System
- Sensing Type
- Infrared recognition
- System Support
- Windows 11 / Windows 10 / Android / Linux / Mac OS X / Chrome
- Touch Point
- Android: 20, Windows: 50, minimum object size diameter ≥ 2mm
- Inductive Object
- Finger, stylus, and any other non-transparent objects
- Response Time
- ≤ 2.0 ms
- Accuracy
- ± 0.5 mm (over 90% area)
- Touch Resolution
- 32768 × 32768
- Interface
- USB
- Touch Drive
- Free drive
- Operating Life
- More than 60,000,000 clicks
- Surface Hardness
- Toughened anti-glare glass with Level 8H (Mohs standard) and anti-glare coating
- Valid Touch
- 1.5 mm
- Touch Height
- ≤ 0.99 mm
- Writing Mode
- Finger + pen (attaches magnetically)
- Anti-Light Interference
- Anti-glare tempered glass
- Minimum Object
- Diameter ≥ 2mm
Built-in System
- CPU / GPU
- Octa-Core A76 × 4 @ 3.0GHz + A55 × 4 @ 1.5GHz
Mali G610 MC4 - RAM
- 8GB (16GB Optional)
- ROM
- 128GB (256GB Optional)
- PC OPS
- Core i5 / i7, 8GB RAM, 256GB SSD
Media Format
- Audio Decoders
- Dolby Digital Plus Decoder, Dolby MS11/MS12, DTS Sound, DTS True Surround, DTS Studio Sound, DTS Studio Sound II, DTS 2.0+Digital Out, DTS Express 5.1, DTS HD
- Audio Codecs
- AMR–NB/WB, DRA, AAC, HEAAC, WMA, Pro, dbx–tv
- Video Codecs
- H.264, H.265, DivX, RMVB
- Connection Interface
- HDMI, HDCP, Wi-Fi, USB, MHL, Bluetooth, NFC, DVB–T2/DVB–S2x/ATSC, PlayReady/MSS/Widevine
General
- Power Supply
- 100~240V AC 50/60Hz
- Power Consumption
- 200 W (typ.); 435 W (max.)
- Standby Power Consumption
- ≤ 0.5W
- Operating Temperature
- 0°C to +40°C (+32°F to +104°F)
- Storage Temperature
- –10°C to +50°C (+14°F to +122°F)
- Operating Humidity
- 10%–90% (RH)
- Storage Humidity
- 10%–90% (RH)
- Casing Color (Frame/Rear)
- Bottom/Top: White, Left/Right: Black, Back: Black
- Product Dimension
- 65 Inches: 1485 × 917.7 × 91.8 mm
86 Inches: 1953.2 × 1176 × 94.0 mm - Packaging Dimension
- 65 Inches: 1700 × 1070 × 230 mm
86 Inches: 2110 × 1310 × 240 mm - Net Weight
- 65 Inches: 37.5 Kg
86 Inches: 80.1 Kg - Gross Weight
- 65 Inches: 44.4 Kg
86 Inches: 87 Kg
