Turn Glass Surfaces Into Dynamic
Digital Experiences

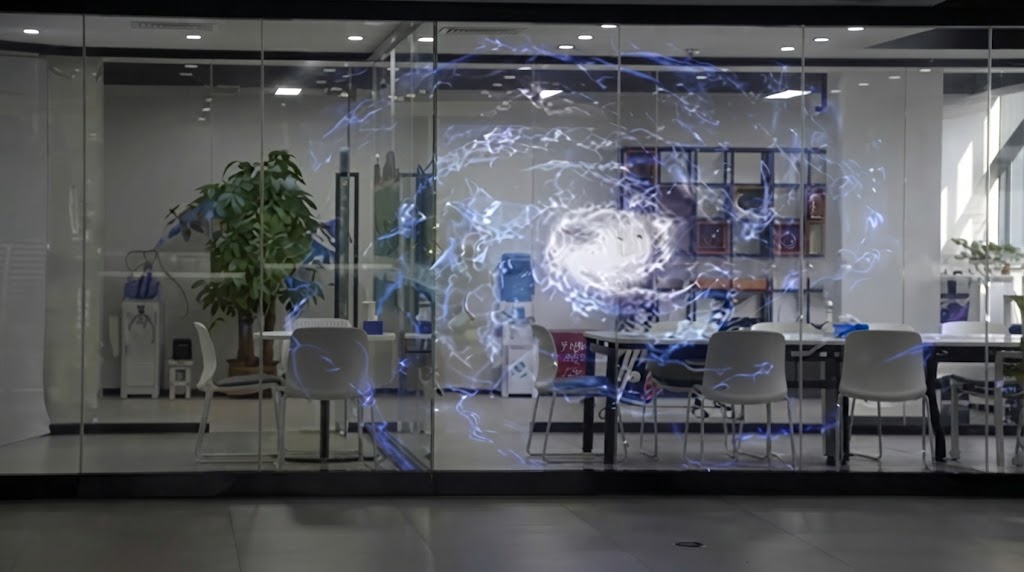

The Flexible Transparent LED Display Film transforms ordinary glass surfaces into vibrant digital communication spaces without completely blocking the view behind them. Its transparent structure is designed to preserve the visual openness of glass while adding high-impact LED content, making it particularly suitable for modern retail and architectural environments. With up to 95% transparency, the display can integrate into glass curtain walls, shopfronts, guardrails and other transparent surfaces while maintaining the surrounding visual connection. The flexible format also allows creative installations on curved or unconventional glass structures. Trace Enterprise provides transparent LED display solutions in Pakistan for businesses seeking an innovative way to combine digital content with contemporary architectural design.

High Transparency Without Losing Visual Impact
Traditional LED displays can obstruct the surface behind them, but transparent LED film is designed to achieve a different balance between digital visibility and environmental openness. Depending on the selected model, the film provides 90% to 95% permeability, allowing natural light and views to pass through the display while digital content remains visible. A 160° viewing angle provides broad visibility from different positions, making the technology suitable for busy retail and commercial spaces. Brightness options range from 2000 to 4000 cd/m², giving businesses flexibility when selecting a configuration for their environment. Trace Enterprise delivers transparent LED technology in Pakistan for high-impact glass-based digital signage and architectural installations.
Flexible LED Technology for Creative Glass Installations

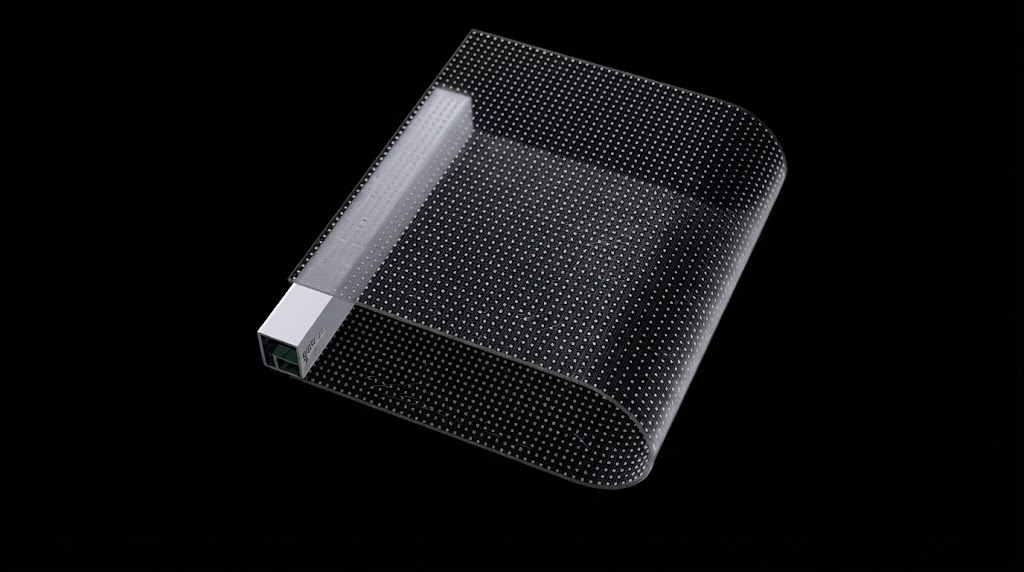

The flexible construction allows the display to be used in applications where conventional rigid LED screens may not be practical. Its 2mm thickness provides a slim profile, while the product range includes multiple pixel pitches from 5mm to 20mm, allowing different levels of image detail to suit the installation. The display also supports 16-bit greyscale and a 3840Hz refresh rate, helping produce smoother digital content and detailed visual output. Depending on the configuration, the system can operate across temperatures from -20°C to 55°C and humidity levels of 10% to 90%. This makes the technology suitable for a broad range of commercial architectural applications in Pakistan.


Designed Around Modern Architectural Spaces

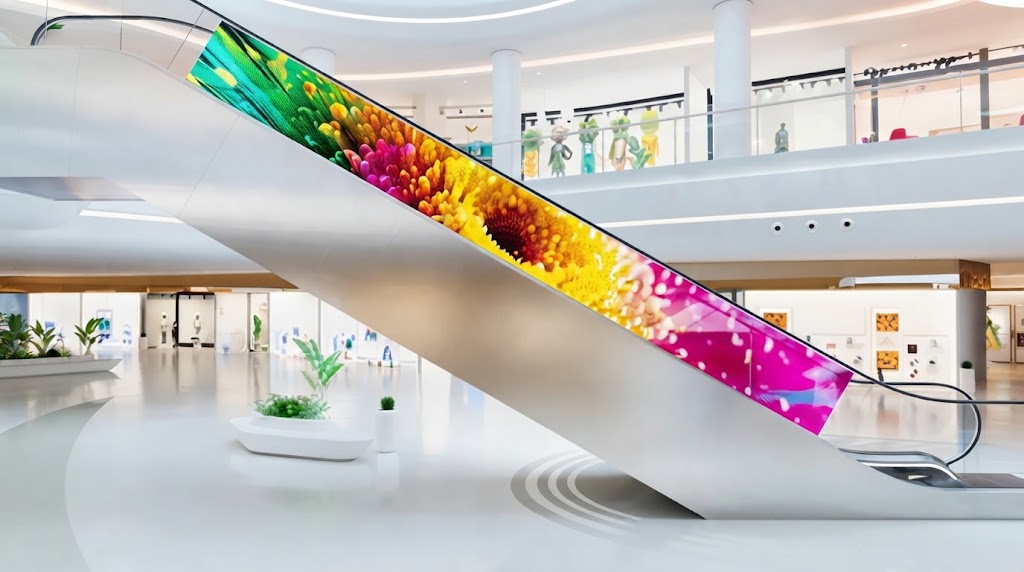

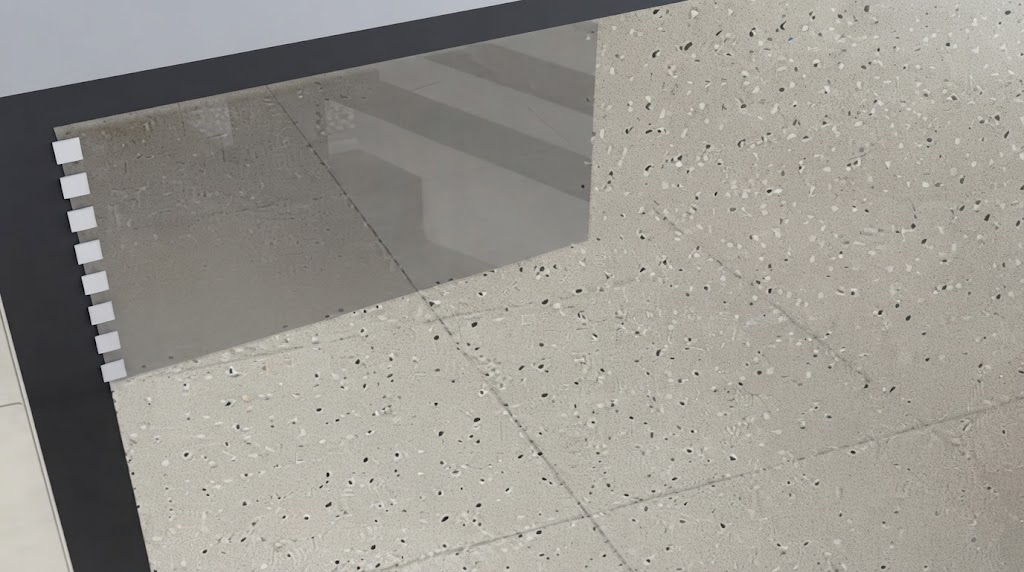

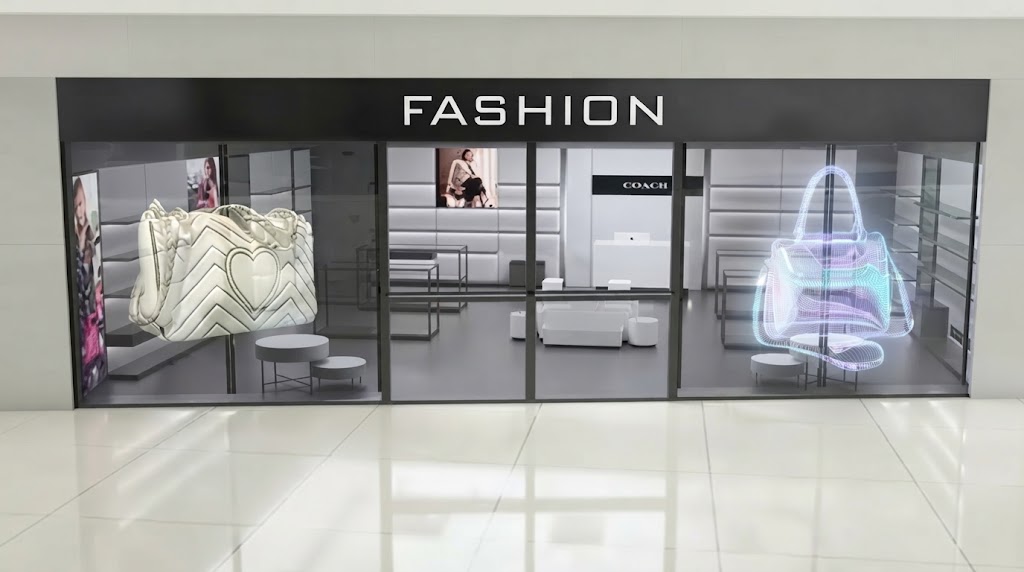

Transparent LED film opens up creative possibilities for businesses that want digital communication to become part of the architecture rather than appear as a separate screen. The supplied application examples include glass curtain walls, glass retail stores, glass guardrails and handrail elevators, showing how the display can be integrated into different transparent surfaces. Its lightweight construction and flexible form make it suitable for installations where maintaining the appearance of the original glass structure is important. Whether used for retail campaigns, branding, decorative visuals or architectural media, the technology can turn underused glass areas into engaging digital surfaces. Trace Enterprise provides transparent LED display solutions in Pakistan for retail, commercial and architectural projects.
Product Features

Up to 95% Transparency

Flexible Transparent Construction

2mm Ultra-Slim Profile

Up to 4000 cd/m² Brightness

3840Hz Refresh Rate

160° Wide Viewing Angle
Product Specifications
Product – O Series
- Module
- TR-6.25 | TR-8 | TR-10 | TR-15 | TR-20
- Module Size (mm)
- TR-6.25: 400 × 1000 mm
TR-8: 400 × 1000 mm
TR-10: 400 × 1000 mm
TR-15: 390 × 990 mm
TR-20: 1000 × 400 mm - LED Light
- TR-6.25: REE 1313
TR-8: 2121
TR-10: REE 1313
TR-15: 2121
TR-20: REE 1313 - Brightness (cd/㎡)
- TR-6.25: 2000
TR-8: 4000
TR-10: 2000
TR-15: 4000
TR-20: 2000 - Pixel Composition
- R1G1B1
- Pixel Spacing (mm)
- TR-6.25: 6.25 × 6.25 mm
TR-8: 8 × 8 mm
TR-10: 10 × 10 mm
TR-15: 15 × 15 mm
TR-20: 20 × 20 mm - Module Pixel
- TR-6.25: 160 × 64 = 10240
TR-8: 125 × 50 = 6250
TR-10: 100 × 40 = 4000
TR-15: 66 × 26 = 1716
TR-20: 50 × 20 = 1000 - Pixel/㎡
- TR-6.25: 25600
TR-8: 15625
TR-10: 10000
TR-15: 4356
TR-20: 2500 - Permeability
- TR-6.25: 90%
TR-8: 92%
TR-10: 94%
TR-15: 94%
TR-20: 95% - Angle of View (°)
- 160°
- Input Voltage
- AC 100-240V / 50-60Hz
- Peak Power
- 600W/㎡
- Average Power
- 200W/㎡
- Work Environment
- Temperature: -20~55°C
Humidity: 10–90% - Weight
- 1.3 kg
- Thickness
- 2.0 mm
- Drive Mode
- Static State
- Control System
- Nova / Colorlight
- Typical Life
- 100,000 H
- Grayscale Level
- 16 bit
- Refresh Rate
- 3840 Hz
Product – I Series
- Module
- TRP-5 | TR-6.25 | TR-8 | TR-10 | TR-20
- Module Size (mm)
- TRP-5: 320 × 1020 mm
TR-6.25: 400 × 1030 mm
TR-8: 400 × 1030 mm
TR-10: 400 × 1030 mm
TR-20: 400 × 1030 mm - LED Light
- TRP-5: 1313
TR-6.25: 2121
TR-8: 1313
TR-10: 2121
TR-20: 1313 - Brightness (cd/㎡)
- TRP-5: 2000
TR-6.25: 4000
TR-8: 2000
TR-10: 4000
TR-20: 2000 - Pixel Composition
- R1G1B1
- Pixel Spacing (mm)
- TRP-5: 5 × 5 mm
TR-6.25: 6.25 × 6.25 mm
TR-8: 8 × 8 mm
TR-10: 10 × 10 mm
TR-20: 20 × 20 mm - Module Pixel
- TRP-5: 200 × 64 = 12800
TR-6.25: 160 × 64 = 10240
TR-8: 125 × 50 = 6250
TR-10: 100 × 40 = 4000
TR-20: 50 × 20 = 1000 - Pixel/㎡
- TRP-5: 40000
TR-6.25: 25600
TR-8: 15625
TR-10: 10000
TR-20: 2500 - Permeability
- TRP-5: 90%
TR-6.25: 90%
TR-8: 92%
TR-10: 94%
TR-20: 95% - Angle of View (°)
- 160°
- Input Voltage
- AC 100-240V / 50-60Hz
- Peak Power
- 600W/㎡
- Average Power
- 200W/㎡
- Work Environment
- Temperature: -20~55℃
Humidity: 10-90% - Weight
- TRP-5: 2kg
TR-6.25: 1.3kg
TR-8: 1.3kg
TR-10: 1.3kg
TR-20: 1.3kg - Thickness
- 2.0mm
- Drive Mode
- Static State
- Control System
- Nova/Colorlight
- Typical Value of Life
- 100000H
- Grayscale Level
- 16bit
- Refresh Rate
- 3840 Hz
