An All-in-One Display for
Smarter Collaboration

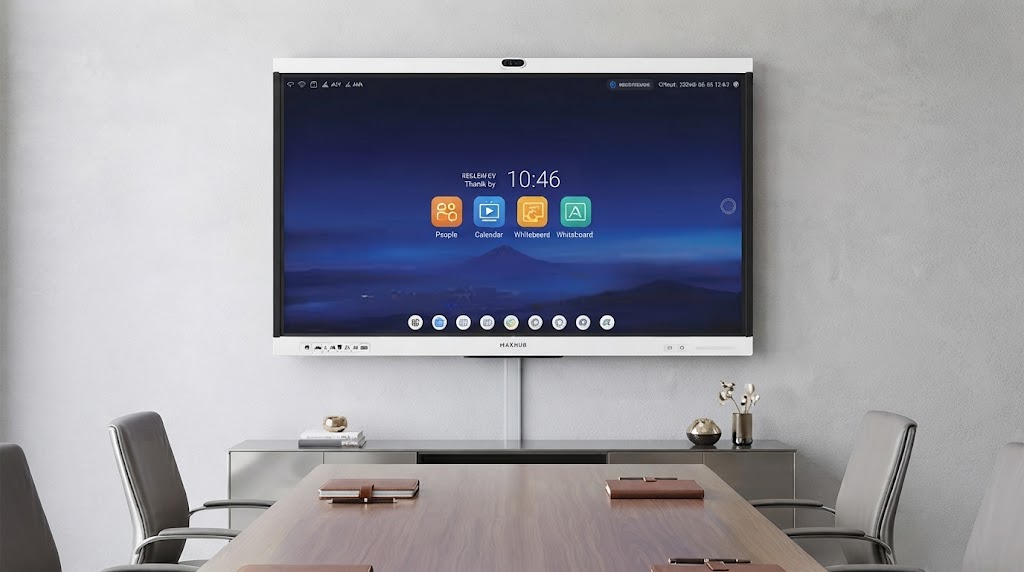

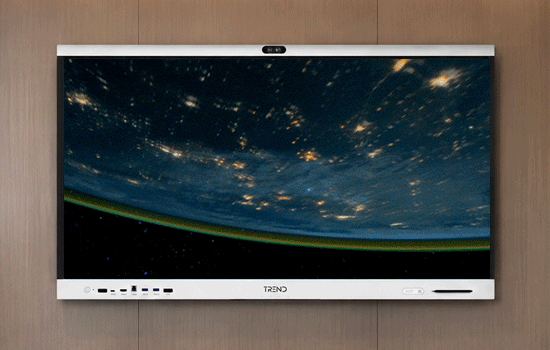

The FA-Series Interactive Flat Panel brings display, interactive whiteboarding, video conferencing and wireless collaboration together in one professional solution. Available in 65-inch, 75-inch and 86-inch sizes, it is designed to support everything from focused huddle-room discussions to larger conference environments. The 4K Ultra HD display provides detailed visuals, while the 20-point infrared touch system allows multiple users to write, annotate and interact with content simultaneously. Built-in cameras, microphones and speakers further reduce the need for separate conferencing equipment.
With Android 13, wireless casting and interactive collaboration features, the FA-Series provides a complete meeting and presentation platform. Trace Enterprise delivers interactive flat panel solutions in Pakistan for corporate, education and professional environments.

AI-Powered Cameras That Keep Every Participant in View
Video conferencing becomes more effective when the camera can intelligently respond to the people in the room. The FA-Series offers advanced camera configurations, including dual 48MP cameras, designed to provide wide room coverage alongside intelligent tracking and auto-framing. AI speaker tracking identifies the active participant and keeps them in focus, while automatic framing adjusts the composition as people enter, leave or change their seating positions. The system also supports gesture recognition for touch-free camera control and AI-powered whiteboard tracking that captures written content while reducing visual obstructions. These capabilities create a more natural meeting experience for both in-room and remote participants. Trace Enterprise provides AI-enabled conferencing displays across Pakistan for modern collaboration spaces.
Clearer Conversations With Intelligent Voice Capture
The FA-Series combines its visual capabilities with an integrated audio system designed for professional communication. A built-in 12-microphone array provides up to 10 metres of sound pickup, while advanced audio processing supports automatic gain control, noise reduction and acoustic echo cancellation. Full-duplex audio helps participants communicate naturally without having to wait for the other person to finish speaking. The integrated speaker system further supports clear audio playback during meetings, presentations and video calls. With these audio technologies built into the panel itself, organisations can reduce dependence on separate conferencing peripherals and create a cleaner meeting-room setup. Trace Enterprise supplies professional interactive collaboration technology in Pakistan for businesses, educational institutions and meeting environments.


Wireless Collaboration Without Complicated Setup
The FA-Series is designed to make sharing information between devices quick and straightforward. Its cloud screen-sharing capability allows users to connect through QR code scanning or a web browser, while the dual Wi-Fi system supports simultaneous network connectivity and wireless screen sharing. An optional wireless casting dongle provides another way to share content with low-latency performance. The panel also includes an interactive whiteboard with support for stylus, finger and eraser input, alongside features such as palm rejection, pressure simulation and pen-tip writing. With Android 13, optional computing configurations and extensive connectivity options, the display can support presentations, brainstorming and collaborative work from a single central platform. Trace Enterprise provides advanced interactive display technology in Pakistan for connected workplaces and learning environments.
Product Features

Dual 48MP AI Camera System

10-Metre Microphone Pickup

AI Whiteboard Tracking

Gesture-Based Camera Control

Cloud Screen Sharing

Advanced Interactive Writing
Product Specifications
Display
- Model
- 65″: TR-MYS65F82, 75″: TR-MYS75F82, 86″: TR-MYS86F82
- Available Size (Inch)
- 65″ / 75″ / 86″
- Dimension (mm)
- 1504 × 117 × 923 mm (for 65″)
1652 × 117 × 1049 mm (for 75″)
1972 × 117 × 1197 mm (for 86″) - Brightness (typ)
- 450 cd/m²
- Color Gamut (typ)
- 85% NTSC
- Contrast Ratio
- 1200:1
- Backlight
- DLED
- Resolution
- Ultra HD 3840×2160
- Aspect Ratio
- 16:09
- Response Time
- 8ms
- Viewing Angle
- 178°
- Color Depth
- 8-bits
- Panel Refresh Rate
- 60Hz
- Others
- Low Blue Light
I/O
- Front Interface
- HDMI In ×1 / USB-B For Touch ×1 / USB-A (Dynamic) 3.0 ×2 / USB-C ×1 supports Power Delivery (PD)
- Front Buttons
- Power On/Off / OPS system reset hole
- Others
- Light sensor ×1 / IR Receiver / X-Mic Receiver ×2 / Environmental Sound Detection ×3 / NFC / Motion Sensor / Pen Launch Detection
- Back Interface
- Side I/O: TF Card Slot ×1 / USB-A (Dynamic) 2.0 ×1 / USB-A (Android) 2.0 ×1 / HDMI In ×2 / USB-B For Touch ×2 / HDMI Out ×1 / OPS Slot ×1
Bottom I/O: RS232 ×1 / Audio Out ×1 / Audio In (For Video Calling) ×1 / Audio In (For Local Amplification) ×1 / RJ45 In ×1 1000M / SPDIF ×1 - Connectivity
- Pluggable Wi-Fi Module and Bluetooth (Dual-band Wi-Fi 6 + Dual-band Wi-Fi 5 + Bluetooth 5)
Sensor
- Temperature and Humidity
- Choose two from PM2.5, Carbon dioxide (CO2), and Temperature humidity
- Wireless Microphone
- Built-in
- Motion Sensor
- Built-in
- NFC
- Built-in
- Quick Pen Launch Detection
- Built-in
Touch
- Touch Technology
- Infrared
- Glass
- Anti-Glare Glass
- Writing Tool
- Stylus / Finger / Eraser
- Touch Points
- 20 Points in Android / 40 Points in Windows
- Writing Features
- Pen Tip Writing / Tail End Erasing / Eraser Rotation Recognition / Simulated Pressure Sensitivity / Palm Rejection
Speaker | Camera | Mic
- Speaker
- L: 20W / R: 20W
- Camera
- Built-in Dual-48MP Camera
- Microphone
- Built-in 12-Microphone Array with AGC / ANR / AEC (10M sound-pickup)
Computing
- OS
- Android 13
- CPU
- A73×4 + A53×4
- GPU
- Mali G52 MP8
- RAM
- 8G | 16G (Optional)
- ROM
- 64G | 128G (Optional)
