Interactive Touch Technology for
Modern Digital Spaces

The Digital Touch Screen Display is designed for environments where people need to interact directly with digital content. Its projected capacitive (PCAP) touchscreen provides a responsive interface, while the toughened glass surface is designed for regular commercial use. Available in 23.6-inch, 32-inch and 43-inch sizes, the display can be configured according to the requirements of different spaces. Its commercial-grade panel supports Full HD 1920 × 1080 resolution, 16.7 million colours and 400 cd/m² brightness for clear on-screen content. Trace Enterprise provides commercial touchscreen display technology in Pakistan for businesses, public spaces and organisations looking to create more engaging digital experiences.

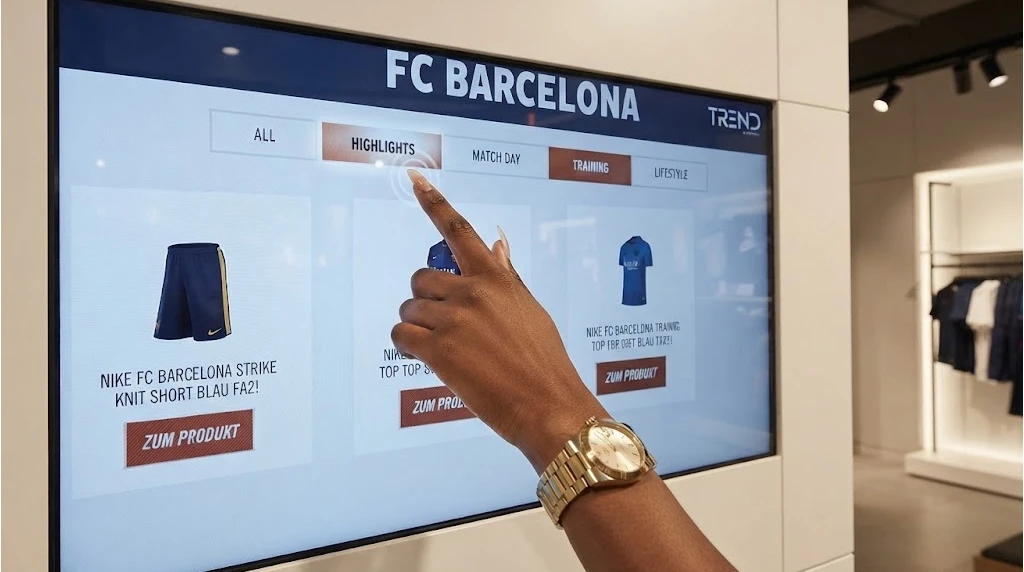

Built for Kiosks, Wall Displays and Customer Interaction

A touchscreen display becomes more useful when it can fit naturally into the space where people interact with it. This display is designed for wall-mounted and kiosk applications, making it suitable for environments where visitors, customers or staff need direct access to digital information. The toughened glass surface provides a durable interface, while the commercial-grade display panel is built for professional applications. Its 16:9 aspect ratio and wide 89° viewing angles help maintain a consistent viewing experience across different positions. From self-service kiosks and information points to interactive product displays, the screen offers a flexible foundation for digital interaction. Trace Enterprise can provide these touchscreen display solutions for organisations across Pakistan.

Clear Full HD Visuals Across Multiple Screen Sizes

Whether the requirement is a compact interactive screen or a larger digital interface, the display is available in 23.6-inch, 32-inch and 43-inch models. Each configuration supports 1920 × 1080 maximum resolution, a 16:9 aspect ratio and 16.7 million display colours. With a 1300:1 contrast ratio and 8ms response time, the display is designed to present digital content clearly and smoothly. The wide viewing angle of 89° in all directions also makes content easier to view from different positions around the screen. These specifications make the display suitable for digital information, product presentation, interactive interfaces and commercial applications across Pakistan.

Reliable Commercial Display with Flexible Connectivity

The Digital Touch Screen Display combines a professional metal SPCC case with practical connectivity for everyday commercial use. It includes HDMI input, USB 2.0 and optional VGA, while built-in 2 × 5W speakers provide audio output for supported content. The display supports common MPEG, AVI, WMV, JPEG, PNG and other media formats, allowing compatible digital content to be displayed without requiring a separate solution for every format. With wall-mounted installation, AC100–240V power support and a specified display life of more than 60,000 hours, it is designed for long-term professional deployment. Trace Enterprise offers flexible digital touch display technology in Pakistan for commercial and interactive environments.

Product Features

PCAP Touchscreen Technology

23.6", 32" & 43" Options

Full HD Commercial Display

Wall & Kiosk Installation

HDMI, USB & Audio Support

Toughened Glass Surface

Product Specifications

Specifications

Panel Size
23.6″ TFT-LCD, 32″ TFT-LCD, 43″ TFT-LCD
Display Area (mm) / Mode (H)*(V)
698.40(H)*392.85(V)mm, 941.184(H)*529.416(V)mm
Aspect Ratio
16 : 9
Maximum Resolution
1920×1080
Display Color
16.7M
Brightness (nits)
400cd/㎡
Contrast
1300:1
Visual Angle
89°/89°/89°/89°
Response Time
8ms
Life (hrs)
>60,000 hrs

Temperature

Working Temperature
0℃~50℃
Storage Temperature
-10℃~60℃
Working Humidity
20%~80%
Storage Humidity
5%~95%

Detailed Functions

Video Format
MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI
Audio Format
WAVE/MP3/WMA/AAC
Image Format
JPEG/BMP/TIFF/PNG/GIF
Image Resolution
480P/720P/1080P

Input and Output for Display Mode

HDMI In (VGA Optional)
x1
USB 2.0
x1
Speaker
2×5W (8Ω)

Video

Color System
PAL/NTSC/SECAM

Power

Power Supply
AC100~240V 50/60 HZ
Maximum Power Consumption
≦120W
Standby Power Consumption
<5W

Appearance

Color/Appearance
Black or Customized
Case
Metal case SPCC
Installation
Wall mounted
