Intelligent Camera Technology for
More Natural Meetings

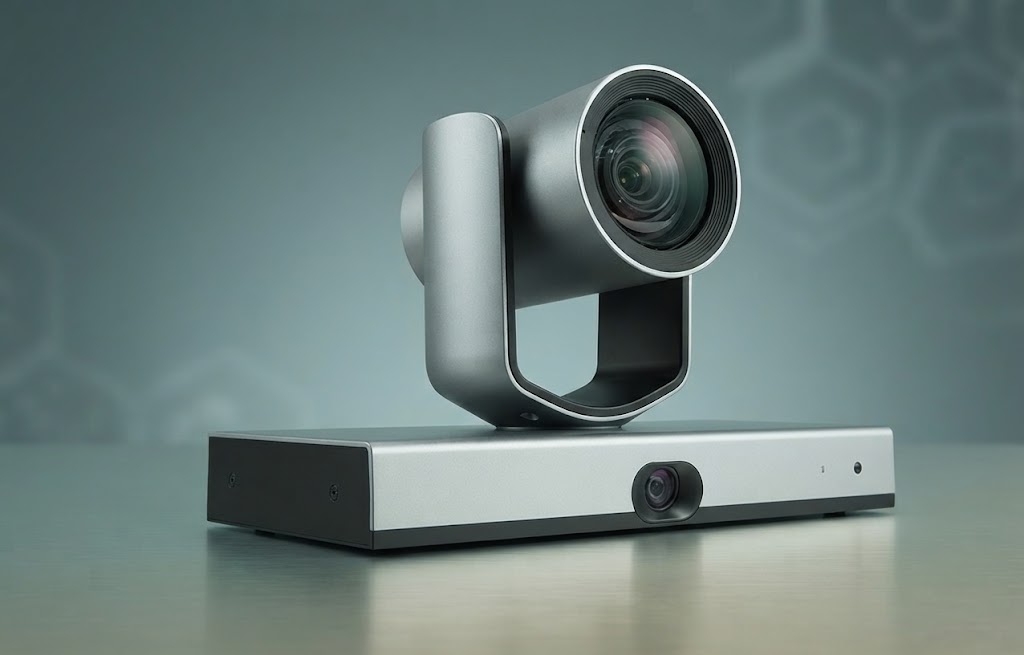

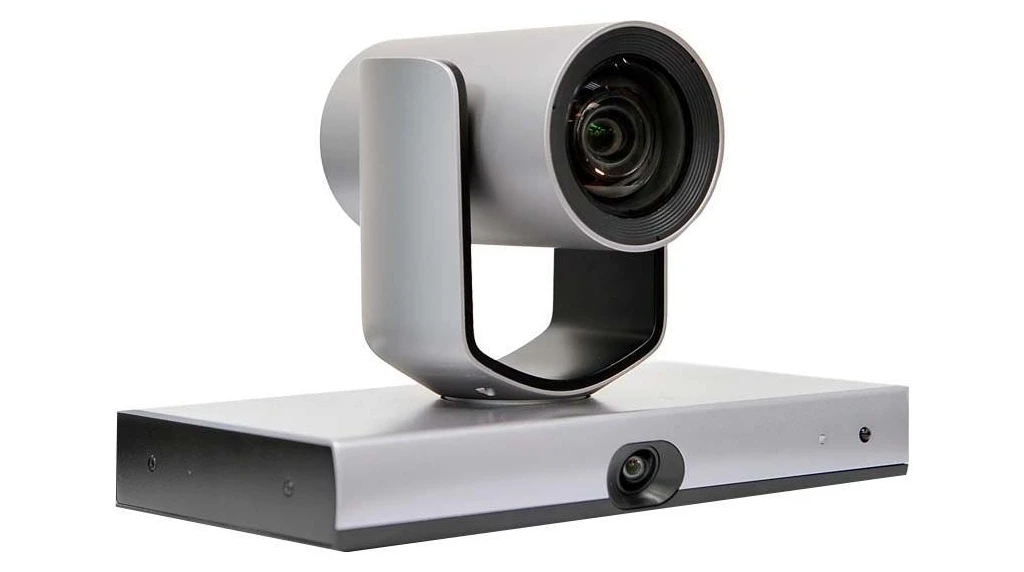

The AI Dual-Lens Tracking Camera is designed to make video meetings, presentations and training sessions more engaging by combining close-up imaging, panoramic coverage and intelligent tracking in one system. Its dual-lens design includes a 1080p close-up camera with 12x optical zoom and a 72.5° field of view, alongside a 1080p panoramic lens offering an ultra-wide 110° view. Automatic lens switching helps maintain the right perspective as the meeting moves between participants and the wider room.
With an integrated 8-element microphone array, the system also coordinates audio and video more precisely. Trace Enterprise provides professional video conferencing solutions in Pakistan for medium-to-large meeting rooms, training spaces and collaborative environments.

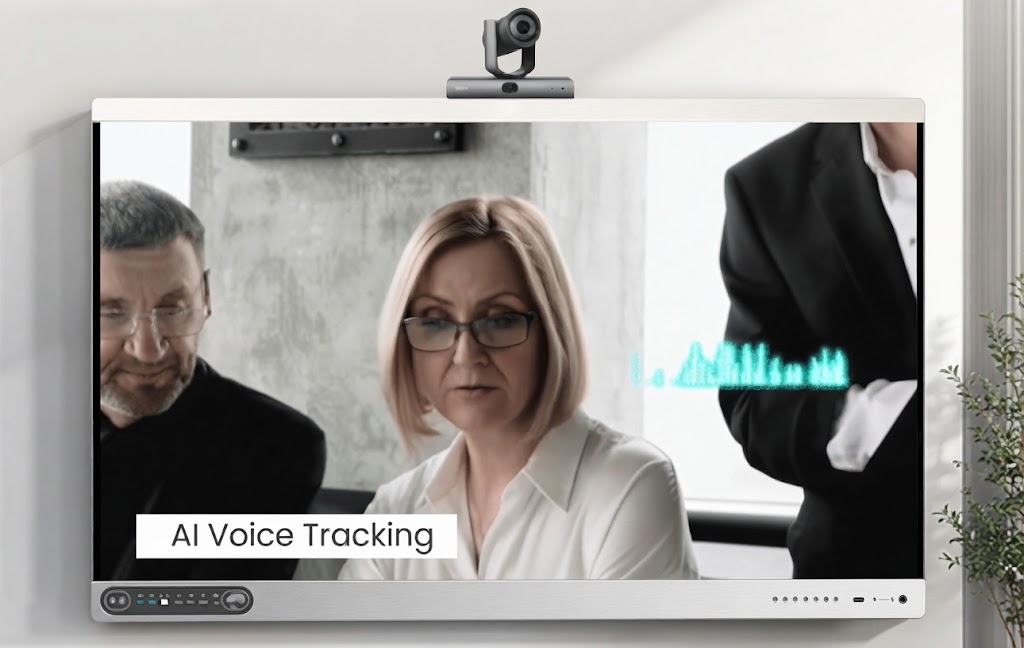

Follow Speakers and Presenters Automatically
Keeping the camera focused on the right person can be difficult during active discussions. This AI tracking camera is designed to automatically identify speakers and presenters, switching between wide and close-up views according to the meeting situation. Its intelligent tracking and character-centring capabilities help remote participants maintain a clear view of the person speaking, while face detection supports presentation scenarios where participants may move around the room. The system also includes auto-framing, which adjusts the composition when people enter, leave or change seating positions. This creates a more natural video experience without requiring someone to operate the camera manually. Trace Enterprise delivers intelligent meeting room camera technology across Pakistan for professional collaboration environments.
Capture Whiteboards and Collaborative Content Clearly
Modern meetings involve more than people sitting around a table. Presentations, training sessions and brainstorming activities often include whiteboards and written content that remote participants also need to see. The camera’s pose and writing-gesture detection help capture whiteboard content clearly, supporting more effective knowledge sharing between people in the room and those joining remotely. Its panoramic lens provides a broad view of the room, while the close-up lens can deliver detailed views when required. This combination makes the camera suitable for discussions, speeches, presentations and whiteboard sessions. Trace Enterprise provides advanced video collaboration technology in Pakistan for organisations that want remote participants to feel more connected to the physical meeting room


Integrated Audio and Video for Simpler Room Setups
The camera is designed to work as more than an imaging device. Its integrated 8-element linear microphone array provides Direction of Arrival accuracy of under 5 degrees, with a maximum microphone detection distance of up to 8 metres. A USB host connection can also link the system with compatible microphone and speaker units, while the camera acts as a central hub for routing conference audio and video signals to the host. Multiple connectivity options, including HDMI, USB 3.0, 3G-SDI, RJ45 PoE and audio interfaces, provide flexibility when integrating the system into an existing meeting room setup. Trace Enterprise supplies integrated AV conferencing technology in Pakistan for boardrooms, training rooms and professional collaboration spaces.
Product Features

Dual-Lens 1080p Imaging

Intelligent Speaker Tracking

AI Auto-Framing

Whiteboard Recognition

8-Element Microphone Array

Extensive AV Connectivity
Product Specifications
Close-up View
- Image Sensor
- 1/2.8-inch CMOS, 2.14 million pixels
- Focal Distance
- f=4.14mm-47.08mm
- Aperture
- F1.6-F2.8
- Optical Zoom
- 12x
- Digital Zoom
- 16x
- Field of View
- Horizontal: 72.5°~6.3°
- Focusing System
- Automatic, manual, one-touch trigger, PTZ trigger
- Shutter Speed
- 1/60-1/10,000s
- Gain
- Auto/Manual
- Exposure Control
- Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
- Minimum Illumination
- 0.5Lux
Microphone
- Microphone Array
- 8-Array Smartline Microphone
- DOA Accuracy
- <5°
- Maximum Detection Distance
- 8m
Panoramic View
- Image Sensor
- 1/2.8-inch CMOS, 2.14 million pixels
- Focal Distance
- f=1.89mm
- Horizontal Field of View
- 110°
- White Balance
- Auto
- Exposure Control
- Auto
Equipment Management
- Firmware Upgrade
- Support
- Status Enquiry
- Support
- Model Number
- TR-VC40-DU
General Specifications
- Control Protocols
- VISCA
- Power Consumption
- <20W
- Working Environment
- Operating Temperature, 0-40°C; Operating Humidity, 10%RH – 90%RH
- Storage Environment
- Storage temperature, -20°C to 60°C; Storage humidity, 10%RH to 90%RH
- Dimensions
- 245mm * 145mm * 165mm
- Weights
- <2 kg
Interface
- Network
- 1×10/100M RJ-45 PoE
- 3G-SDI
- 1x3G-SDI
- HDMI
- 1xHDMI OUT Audio Output Available
- USB 2.0
- 1xUSB 2.0 Type-A HOST
- USB 3.0
- 1xUSB 3.0 Type-B
- Audio Interface
- 1xLINE IN 3.5mm Audio Interface
- Reference Audio
- 1xREF 3.5mm Audio Interface
- Control Interface
- 1xRS-485 IN, 1xRS-232 IN
- Power Connector
- DC 12V
- Power Switch
- Rocker switch
- Wireless Control
- Infrared remote
PTZ Functions
- Horizontal Range
- -130°~+130°
- Vertical Range
- -30°~+90°
- Horizontal Rotation Speed
- 0.1°~100°/s
- Vertical Rotation Speed
- 0.1°~80°/s
- Number of Preset Points
- 64
