Advanced Ceiling Audio for
Large Collaboration Spaces

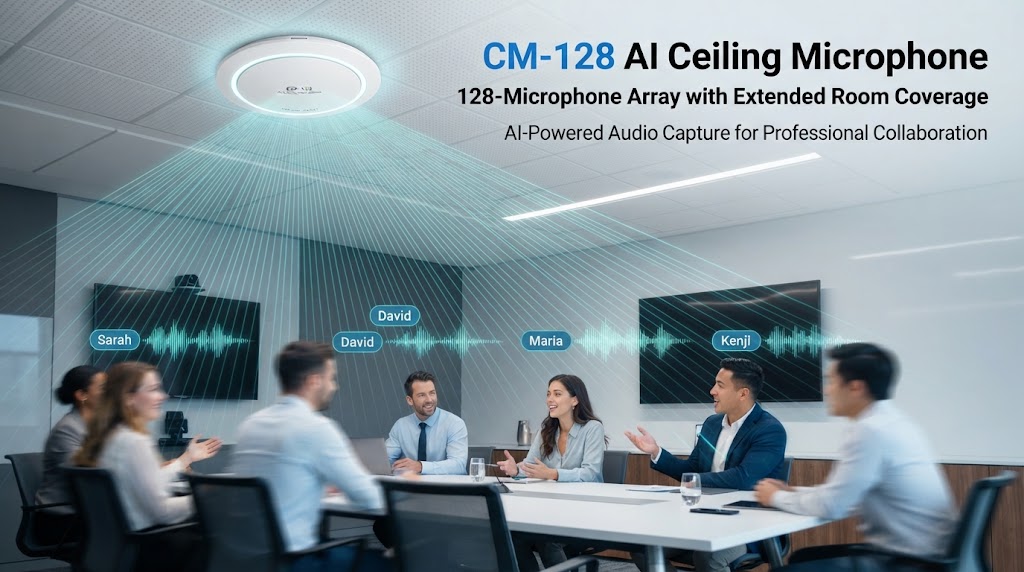

The AI Ceiling Conference Microphone CM-128 is designed for professional environments where wide-area voice coverage and intelligent audio processing are essential. With a 128-microphone MEMS array and an 8-metre pickup radius, it is built to capture conversations across larger meeting spaces without relying on multiple tabletop microphones. The system supports AI full-duplex communication, smart mixing and advanced echo cancellation, helping maintain clear communication between in-room and remote participants.
Its ceiling-mounted design also keeps meeting tables clear and creates a cleaner, more integrated AV environment. For organisations in Pakistan, Trace Enterprise provides professional ceiling microphone technology for boardrooms, classrooms, auditoriums and large meeting spaces.
128-Microphone Array with Extended Room Coverage
Large rooms require a microphone system that can capture voices across a broader area without forcing participants to stay close to a central device. The CM-128 features a 128-microphone array with an 8-metre pickup radius, making it suitable for larger collaboration environments. The system also supports unlimited cascading, allowing multiple units to be deployed when additional coverage is required. This scalable architecture makes the microphone suitable for smart boardrooms, classrooms, auditoriums and meeting rooms where participants may be distributed across a larger space. With configurable pickup areas and 16 available pickup zones, the CM-128 provides greater control over how audio is captured.

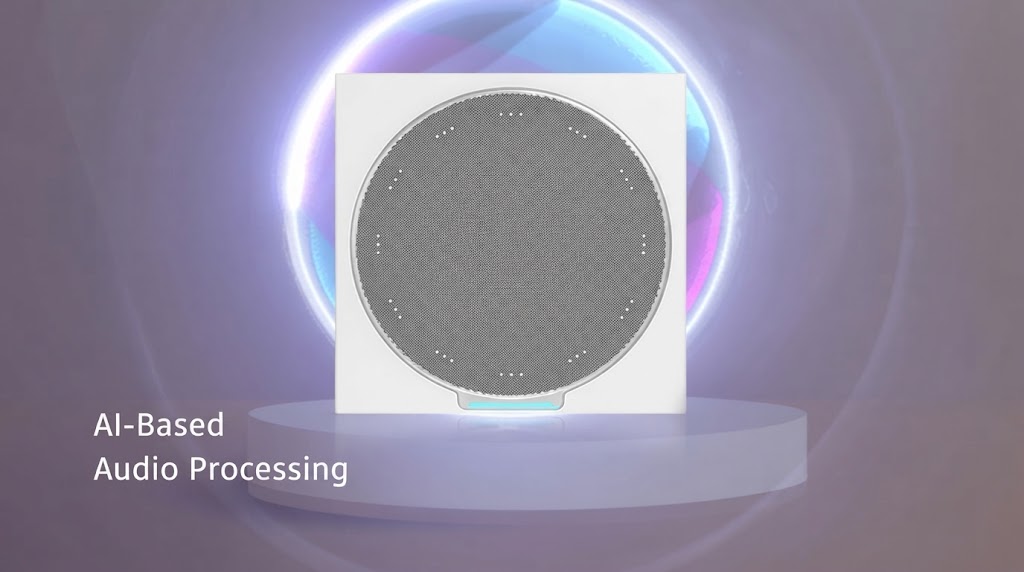

AI Audio Processing for Clearer Communication
The CM-128 combines its extensive microphone array with AI-powered audio processing to improve speech clarity in demanding environments. Its patented AI algorithm supports noise reduction, echo cancellation and reverberation suppression, helping reduce unwanted sounds that can affect remote communication. The system also supports AI whistling suppression, AI full-duplex operation and smart mixing, while background noise suppression is specified at up to 35dB. With 48kHz sampling and support for high-definition audio, the microphone is designed to provide detailed voice reproduction during meetings, teaching sessions and presentations.
Dante Audio and Scalable AV Integration
The CM-128 is designed to become part of a professional networked audio environment rather than operate as a standalone microphone. It supports the Dante Audio standard, enabling audio transmission over IP networks and integration with compatible Dante-enabled AV equipment. The microphone provides a Dante/PoE network port and supports both a remote conference channel and a local reinforcement channel. Its PoE+ power supply simplifies installation, while the system supports an unlimited number of cascades for larger deployments. The microphone can be installed flush within a ceiling grid, suspended using steel rope or mounted below the ceiling using poles. This makes it adaptable to different architectural and AV requirements across Pakistan.
Product Features
128-Microphone MEMS Array
8m Pickup Radius
AI Noise & Echo Suppression
16 Configurable Pickup Zones
Unlimited Cascading
Dante Audio with PoE+
Product Specifications
Basic Specifications
- Product Color
- White
- Product Size
- 597mm × 597mm × 53.5mm
- Package Size
- 680mm × 680mm × 160mm
- Package Net Weight
- <5 kg
- Power Supply
- PoE+ Powered
- Installation
- Suspension
Microphones
- Microphone Type
- 128-mic MEMS Array
- Microphone Sensitivity
- -38 dBV / 94 dB SPL @1kHz
- Signal-to-Noise Ratio
- 65 dB(A) / 94 dB SPL @1kHz, A-weighted
- Model Number
- CM-128
Operations
- Working Temperature
- 0°C ~ 40°C
- Storage Temperature
- -20°C ~ +70°C
- Operating/Storage Humidity
- 20 to 95% RH
- Power Consumption
- 15W
Dante Audio
- Dante Audio
- Support
- Remote Conference Channel
- 1
- Local Reinforcement Channel
- 1
Interface
- Dante/PoE Network Port
- 1
- RESET Button
- 1
Audio Performance
- Available Pickup Zones
- 16 (8 Teleconference + 8 Voice Lift)
- Sampling Rate
- 48kHz
- Pickup Area Type
- Configurable
- Background Noise Suppression
- 35 dB
- AI Noise Reduction Suppression
- Support
- AI Reverb Suppression
- Support
- AI Whistling Suppression
- Support
- AI Echo Cancellation
- Support
- AI Full Duplex
- Support
- Mix Channels
- Support
- Smart Mix
- Support
- Delay
- 25ms
Environmental Conditions
- Operation Temperature
- -10°C – 50°C @ 10% – 90%
- Operation Humidity
- 10% – 90% RH
- Storage Temperature
- -20°C – 60°C @ 10% – 90%
- Storage Humidity
- 10% – 90% RH
- Altitude
- Below 5000 meters
Cascade Function
- Number of Cascades
- Unlimited Number
